Top Quality Stone Saw + Tiling Tools by SawMaster

SawMaster’s top quality stone saw and tiling tools are available in a myriad of configurations for industry professionals in different segments of the stone industry. Unlike stationary saws offered by other manufacturers, SawMaster's stone saws can be deployed anywhere that work is required, both indoors and outdoors. For over 20+ years, we have been setting new standards in the diamond tool industry by combining competitive pricing and high-quality products. Our office is located in Corona, California, but we are able to service and ship our high-performing stone saws and other products to any consumer residing in the United States.

Our premium quality stone saws come in two flavors: traditional conveyer table saws for conventional cutting jobs and bridge saws for oversized jobs. Regardless of configuration, these compact saws can be easily transported on or in between jobs sites. Our highly knowledgeable and experienced engineers have created each of our stone saws to be suitable for a variety of applications, ranging from thick marble blocks to large porcelain tile slabs.

Here at SawMaster, we promise to deliver excellent customer service, affordable pricing and high-performance tools that are engineered with precision, care and the finest materials. Whether you’re a professional tile installer or general contractor, you are guaranteed to find the accurate top-quality stone saw to execute your construction task well beyond your expectations. Contact SawMaster today!


*BLADE AND SAW NOT INCLUDED.

SAWMASTER

R5

  • Product Type: Kit For Hand Saw
  • Rail Lengths: 5.5'/7.5'
  • Rail Material: Aluminum

  • Compatible Saw: H5
  • 90 Deg Cutting Depth: 1-3/16"
  • 45 Deg Cutting Depth: 7/8"

Read more

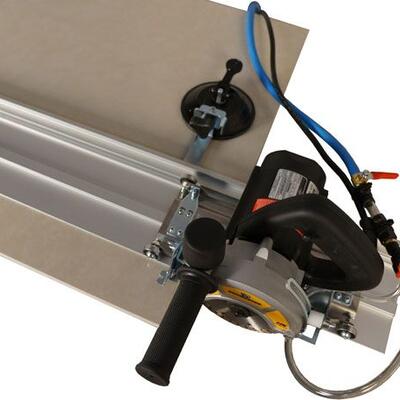

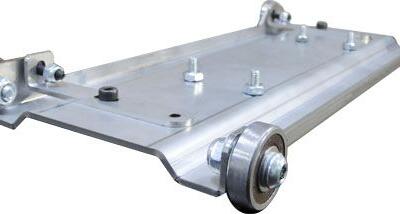

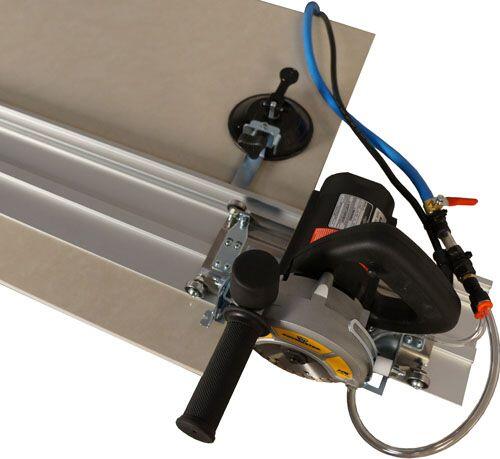

The R5 kit is SawMaster’s lightweight rail system.  It is comprised of two aluminum rails, hardware to join the rails, and a skid assembly for the SawMaster H5 hand tile saw to mount to.  Kit choice will determine which combination of 5.5- or 7.5-feet rails are included.  The metal skid arrangement uses high-quality ball bearing and adjustable PFOA guides to make travel on the rail effortless and stable.  In addition, pairs of c-clamp and suction cup mounting hardware are included to anchor the assembled rails to any flat material that need to be cut.

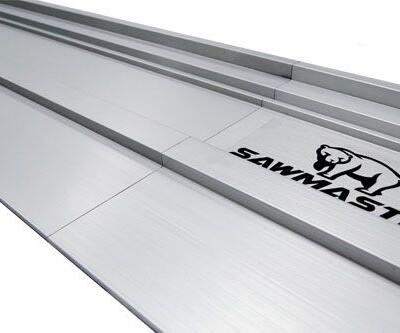

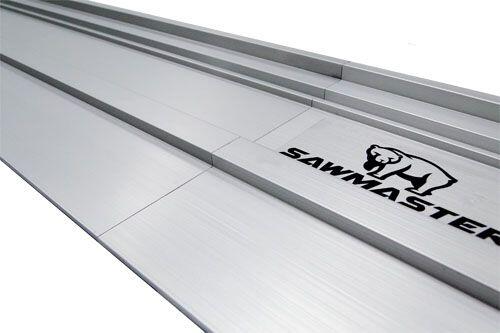

INFINITE NUMBER OF RAILS CAN BE CONNECTED.

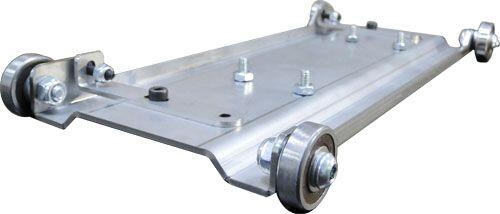

SKID IS EASILY MOUNTED BY FOUR SCREWS.
RAIL CAN BE CLAMPED FROM THE ENDS OF THE MATERIAL OR FROM THE TOP USING THE SUCTION CUPS, AS SHOWN.

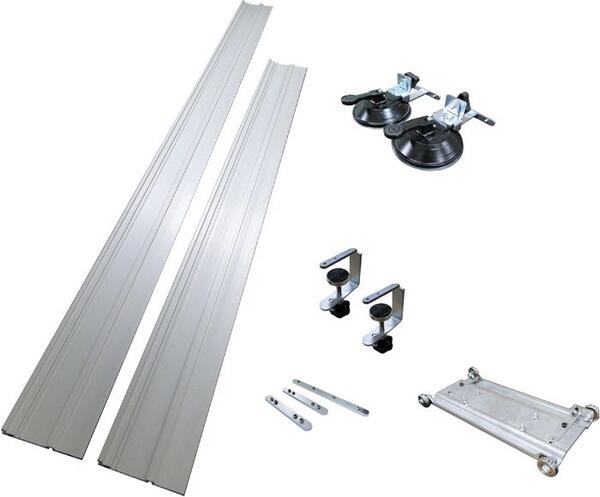

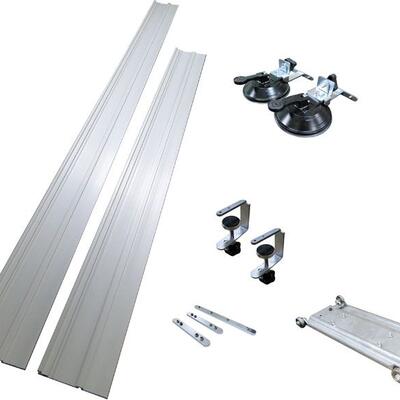

WHAT IS INCLUDED IN THE KIT.
Product TypeKit for Hand Saw
Rail Lengths5.5'/7.5'
Rail MaterialAluminum
Compatible SawH5
90 Deg Cutting Depth1-3/16"
45 Deg Cutting Depth7/8"
Rip Cut (with single rail)4.5'/6.5'
Rip Cut (with multiple rail)Unlimited
Get a quote
SDT-25EX

SawMaster

SDT-25EX

  • Saw Type: Stone
  • Motor: 115 V/60 Hz
  • Horsepower: 1-1/2 HP

  • Blade Capacity: 10"
  • Blade Arbor: 5/8"
  • RPM: 3450

0,00$

Read more

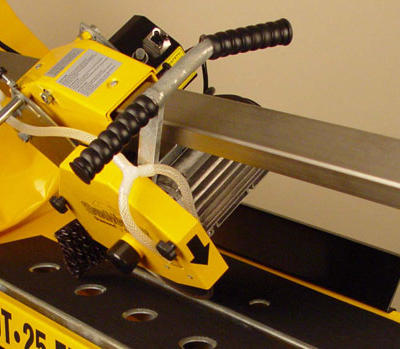

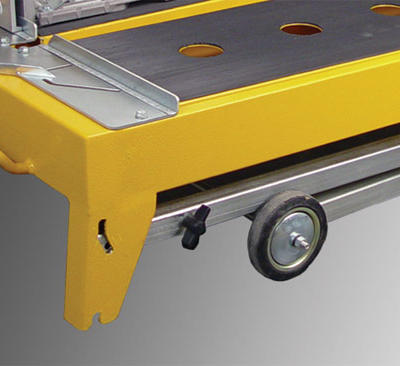

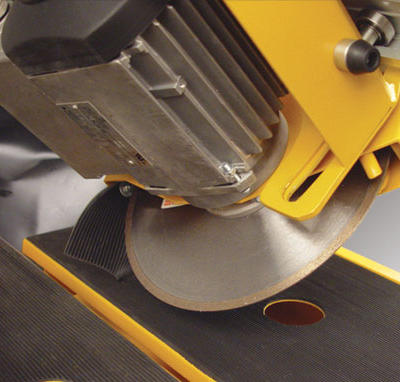

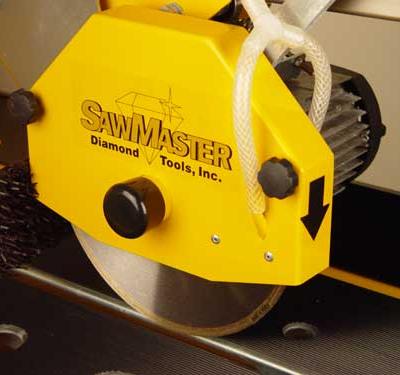

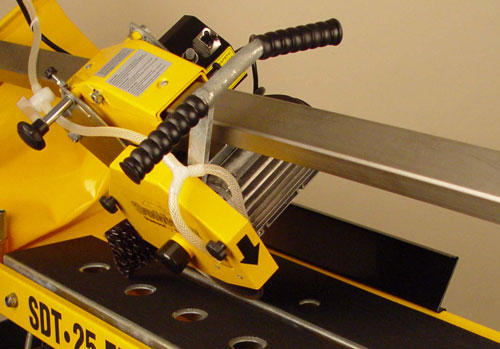

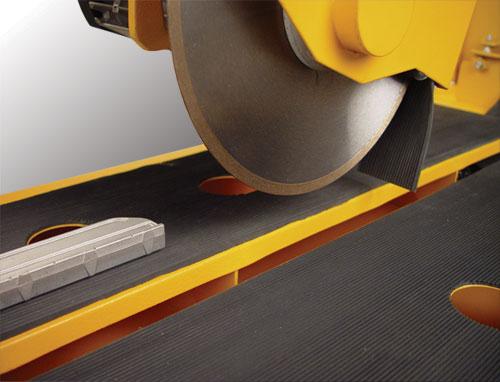

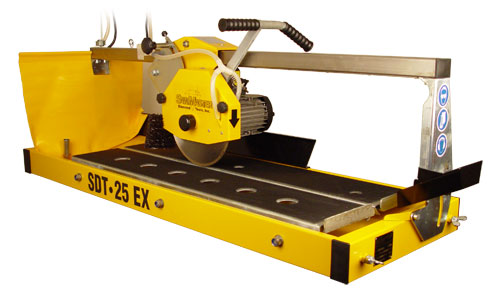

The SDT-25EX stone saw features a 10" blade capacity and a 1-1/2 HP motor to facilitate the cutting of large, hard materials like stone, brick and porcelain tile. Spanning 55" in length, the saw is small enough to fit in conventional pickup trucks, while still being able to cut tiles up to 36" straight and 25" diagonally. This model provides built-in support for miter cuts and excellent vertical clearance for deep plunge cuts.

Saw TypeStone
Motor115 V/60 Hz
Horsepower1 - 1/2 HP
Blade Capacity10"
Blade Arbor5/8"
RPM3450
Weight112 lbs
Cutting Depth2-5/8"
Rip Cutting36"
Diagonal Cutting25" x 25"
Thermal ProtectionEquipped
Get a quote
SDT-1025

SawMaster

SDT-1025

  • Saw Type: Stone
  • Motor: 115 V/60 Hz
  • Horsepower: 1-1/2HP

  • Blade Capacity: 8"~10"
  • Blade Arbor: 5/8"
  • RPM: 3450

0,00$

Read more

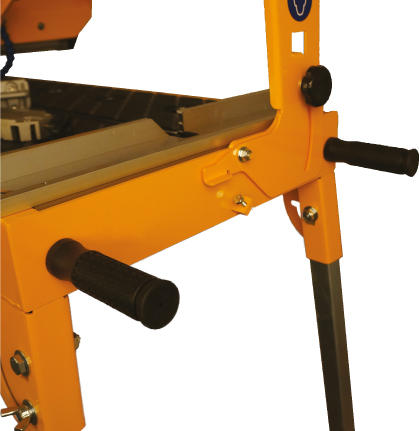

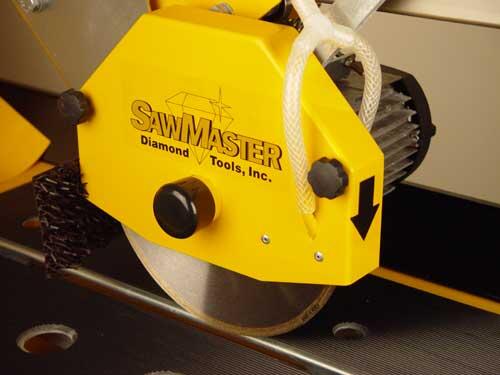

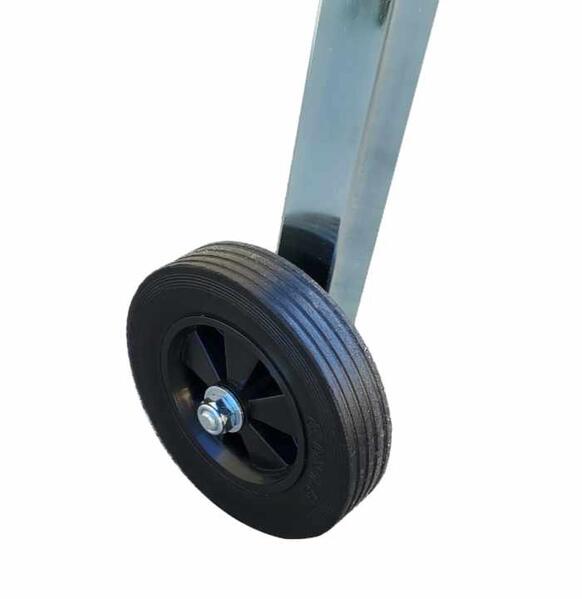

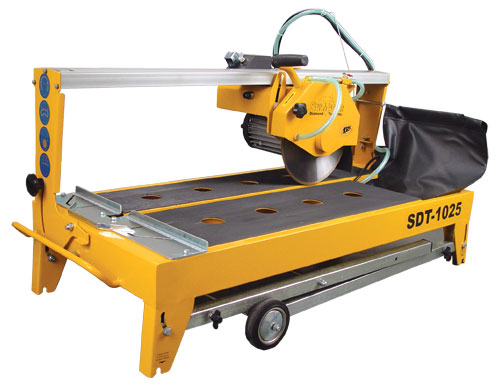

The SDT-1025 is an affordable entry-level rail saw designed to fulfill the large cutting capacity needs of professional tile installers. Equipped with a robust 1-1/2 HP induction motor and 10" diamond blade, the SDT-1025 can cut tiles up to 27" in length with remarkable ease. For added versatility and value, the saw also offers superb plunge cuts, miter cutting capability and an integrated folding stand for convenient setup and transportation.

Saw TypeStone
Motor115 V/60 Hz
Horsepower1-1/2HP
Blade Capacity8"~10"
Blade Arbor5/8"
RPM3450
Dimension46"L X / 22"W X / 24"H
Weight115 lbs
Cutting Depth2-3/8"
Rip Cutting27"
Diagonal Cutting19" x 19"
Thermal ProtectionEquipped
Get a quote

SawMaster

R1040

  • Saw Type: Stone
  • Motor: 115 V/60 Hz
  • Horsepower: 1-1/2HP

  • Blade Capacity: 8"~10"
  • Blade Arbor: 5/8"
  • RPM: 3240

Read more

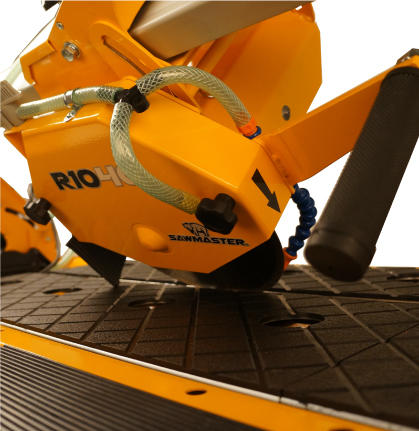

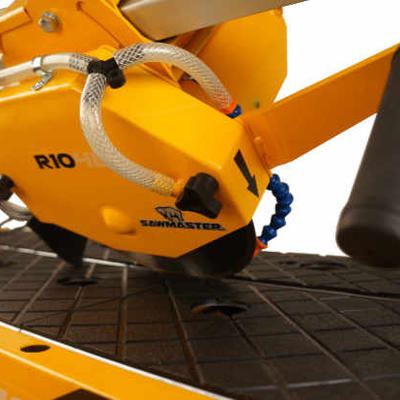

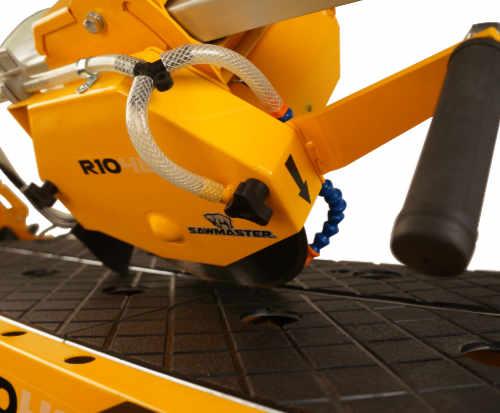

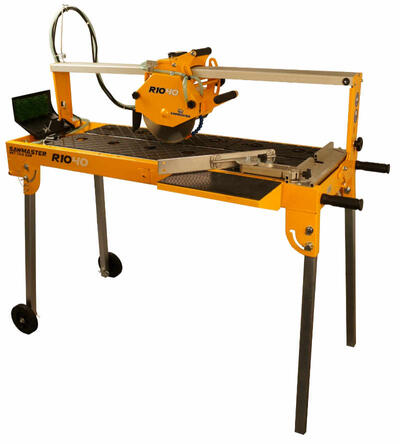

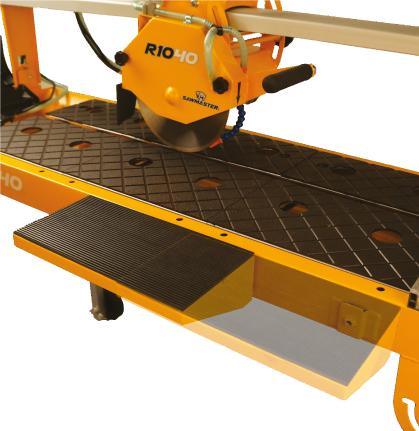

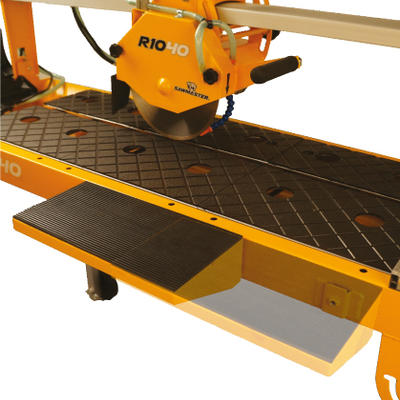

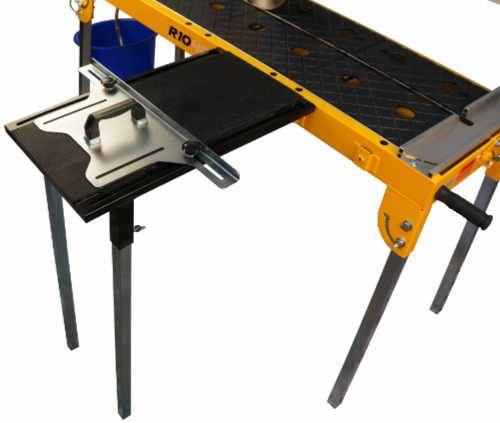

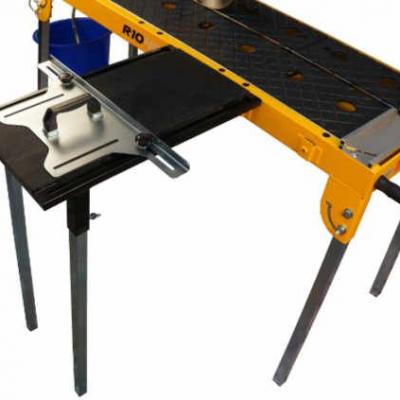

The R1040 is a professional rail saw designed to handle large tile and stone jobs. Its substantial cutting length of 40" allows it to cut tiles as large as 28" square on a diagonal. To ensure precision cuts on materials of this size, the saw comes standard equipped with a side extension table. For added versatility, the saw is capable of performing plunge cuts and miter cuts and features an integrated folding stand.

MotorInduction motor
Power1.5 HP (1.1 kW)
Voltage115 V
Amperage15 A
Rip Cut (max cut parallel to tile edge)40 in (1016 mm) tiles
Diagonal Cut (max cut 45 degree to tile edge)28 in (711 mm) tiles
Max Cutting Depth2.4 in (61 mm)
Arbor Diameter0.625 in (15.88 mm)
Blade Shaft Rotation per Minute3240 RPM
Water TrayEmbedded with steel frame
Weight172 lbs (78.2 kg)
Blade Guard Capacity8 in - 10 in (203 mm - 254 mm)
Get a quote

SAWMASTER

R1048

  • Saw Type: Stone
  • Motor: 115V/60 Hz
  • Horsepower: 1-1/2HP

  • Blade Capacity: 8"~10"
  • Blade Arbor: 5/8"
  • RPM: 3240

Read more

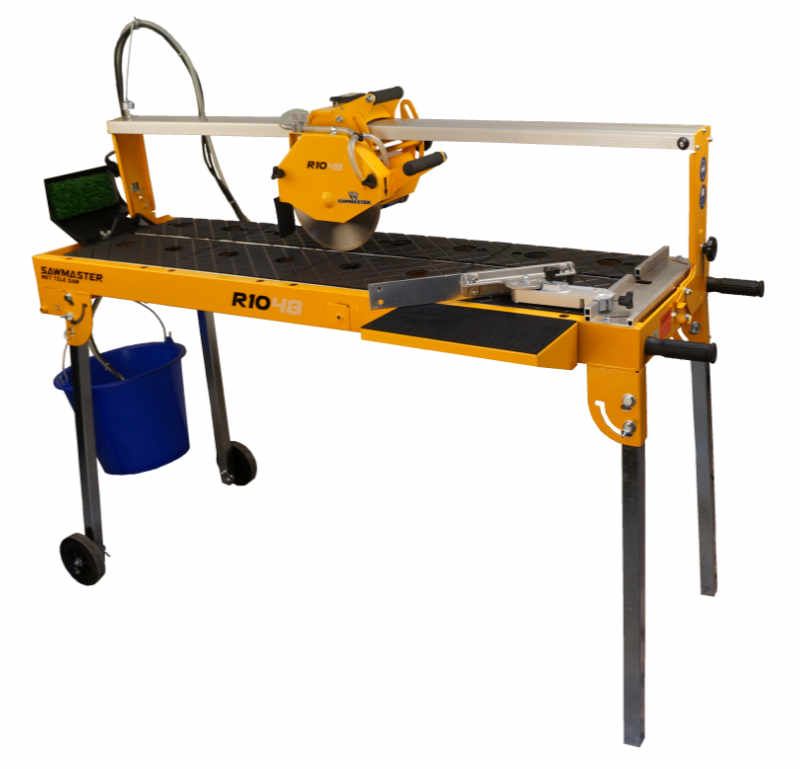

The R1048 is an extended version of the R1040 stone saw capable of handling even larger material while retaining all of its features.  With the optional long side extension table, it can handle extremely wide material to make 48" rip cuts or diagonal cuts of massive 34" square tiles.  While the saw is longer it is still robust enough to handle being transported and can fit most conventional work vehicles without a problem.

MotorInduction motor
Power1.5 HP (1.1 kW)
Voltage115V
Amperage15 A
Rip Cut (max cut parallel to tile edge)48 in (1219 mm) tiles
Diagonal Cut (max cut 45 degree to tile edge)34 in (863 mm) tiles
Max Cutting Depth2.4 in (61 mm)
Arbor Diameter0.625 in (15.88 mm)
Blade Shaft Rotation per Minute3240 RPM
Water TrayEmbedded with steel frame
Weight225 lbs (102.3 kg)
Blade Guard Capacity8 in - 10 in (203 mm - 254 mm)
