SawMasterR1040

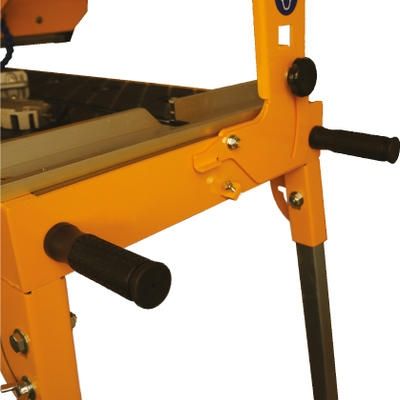

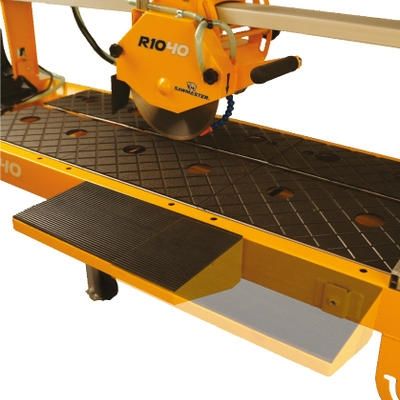

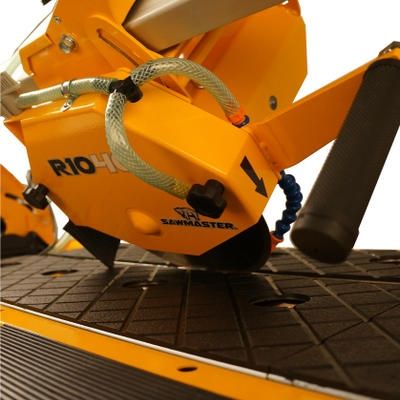

The R1040 is a professional rail saw designed to handle large tile and stone jobs. Its substantial cutting length of 40" allows it to cut tiles as large as 28" square on a diagonal. To ensure precision cuts on materials of this size, the saw comes standard equipped with a side extension table. For added versatility, the saw is capable of performing plunge cuts and miter cuts and features an integrated folding stand.


  • Saw Type: Stone
  • Motor: 115 V/60 Hz
  • Horsepower: 1-1/2HP
  • Blade Capacity: 8"~10"
  • Blade Arbor: 5/8"
  • RPM: 3240

MotorInduction motor
Power1.5 HP (1.1 kW)
Voltage115 V
Amperage15 A
Rip Cut (max cut parallel to tile edge)40 in (1016 mm) tiles
Diagonal Cut (max cut 45 degree to tile edge)28 in (711 mm) tiles
Max Cutting Depth2.4 in (61 mm)
Arbor Diameter0.625 in (15.88 mm)
Blade Shaft Rotation per Minute3240 RPM
Water TrayEmbedded with steel frame
Weight172 lbs (78.2 kg)
Blade Guard Capacity8 in - 10 in (203 mm - 254 mm)
