SAWMASTERR1048

R1048

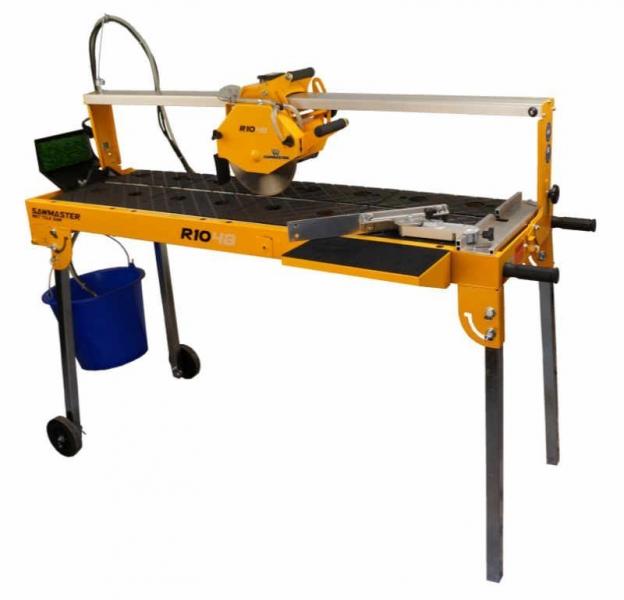

The R1048 is an extended version of the R1040 stone saw capable of handling even larger material while retaining all of its features.  With the optional long side extension table, it can handle extremely wide material to make 48" rip cuts or diagonal cuts of massive 34" square tiles.  While the saw is longer it is still robust enough to handle being transported and can fit most conventional work vehicles without a problem.


  • Saw Type: Stone
  • Motor: 115V/60 Hz
  • Horsepower: 1-1/2HP
  • Blade Capacity: 8"~10"
  • Blade Arbor: 5/8"
  • RPM: 3240

MotorInduction motor
Power1.5 HP (1.1 kW)
Voltage115V
Amperage15 A
Rip Cut (max cut parallel to tile edge)48 in (1219 mm) tiles
Diagonal Cut (max cut 45 degree to tile edge)34 in (863 mm) tiles
Max Cutting Depth2.4 in (61 mm)
Arbor Diameter0.625 in (15.88 mm)
Blade Shaft Rotation per Minute3240 RPM
Water TrayEmbedded with steel frame
Weight225 lbs (102.3 kg)
Blade Guard Capacity8 in - 10 in (203 mm - 254 mm)
