SawMaster SDT-1000XL

 SDT-1000XL

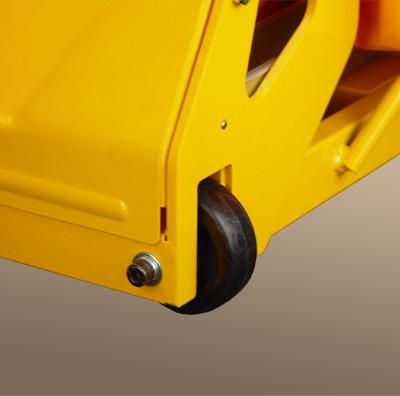

The SDT-1000XL is known among tile installers for its ability to deliver exceptional performance on tiles of all sizes. In fact, the SDT-1000XL was the first of its line to truly support oversized tiles—a significant feature by today's standards due to the common use of large tiles in modern construction. The latest generation of the SDT-1000XL continues to offer the same large cutting capacity and 1-1/2 HP motor of its predecessor. In addition, it addresses the issue of portability by including frame-mounted wheels to ease the task of transporting the saw around the job site.


  • Saw Type: Tile
  • Motor: 115 V/60 Hz
  • Horsepower: 1-1/2 HP
  • Blade Capacity: 6"~10"
  • Blade Arbor: 5/8"
  • RPM: 3200

Saw TypeTile
Motor115 V/60 Hz
Horsepower1 - 1/2 HP
Blade Capacity6"~10"
Blade Arbor5/8"
RPM3200
Weight125 lbs
Cutting Depth3-1/2"
Rip Cutting24"
Diagonal Cutting16"
Thermal ProtectionEquipped
SUS Water TrayEquipped
LCBHEquipped
