SawMaster M1036

M1036

A versatile mobile wet tile saw. With its sturdy all metal frame and its convenient modular wheel system, this machine can handle anything the job site throws at it. Having an all-aluminum cutting table with a rubber injected mat makes supporting tiles up to 36 inches very easy and secure.

Powering the 10 inch blade is a reliable 2 horsepower universal motor, a motor that has proven itself capable of handling the most challenging materials. In addition the advance water filtration and spray system makes the saw a very attractive proposal to anyone looking for a very capable saw.


  • Saw Type: Tile
  • Motor: 115V/60 Hz
  • Horsepower: 2 HP
  • Blade Capacity: 10"
  • Blade Arbor: 5/8"
  • RPM: 2830

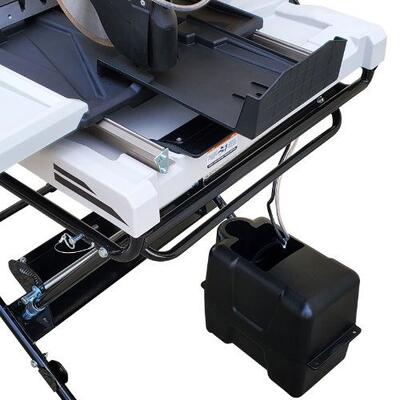

Multi-stage water filtration system uses partitioned reservoirs to separate sediment from the water prolonging pump life.
Spring loaded cutting head with transverse shaft allowing for 22.5° and 45° cutting.

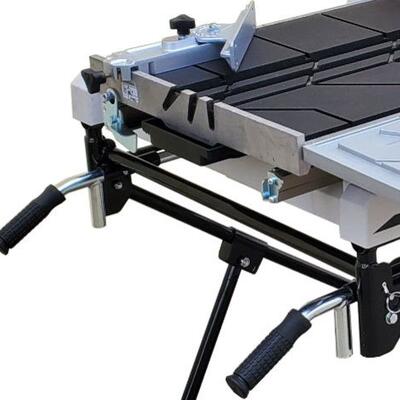

All aluminum cutting table big enough to span about 6 square feet in surface area.
The extension drip tray returns water spray and runoff produced during operation to the water tray to minimize the loss of water and to keep the work site clean.
Saw TypeTile
Motor115 V/60 Hz
Horsepower2HP
Blade Capacity10"
Blade Arbor5/8"
RPM2830
Dimension38.5"L X / 23"W X / 21"H
Weight132 lbs
Cutting Depth2.4"
Rip Cutting36"
Diagonal Cutting24"
Thermal ProtectionEquipped
Reinforced Nylon Water TrayEquipped
