Sawmaster Diamond Tools Segmented Blades

Asphalt

Asphalt Segmented Blades Premium

Wet or dry cutting


  • Asphalt
  • Green Concrete
  • Cinder Block

0,00 $

Read more

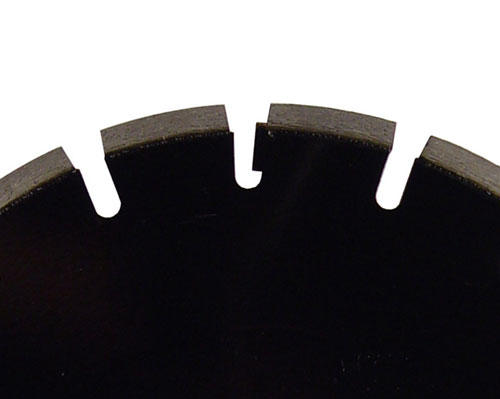

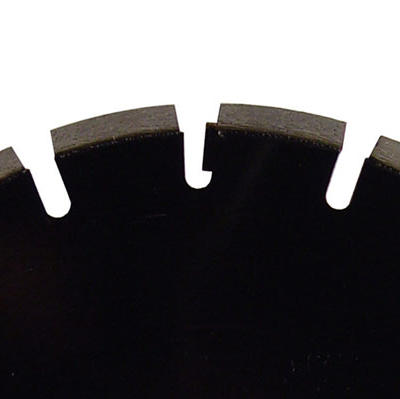

The SA Series Segmented Blades are best suited for highly abrasive materials, such as asphalt and green concrete. To protect against segment loss and excessive wear on the steel core, these blades are outfitted with undercut protection.

Asphalt_Undercut

Diameter Width // Rim Height Arbor Item
8" 0.095" / 8.5mm 5/8"DM7/8" SA0880RM/RS
10" 0.095" / 8.5mm 5/8"~7/8" SA1080RM/RS
12" 0.125" / 8.5mm 1"~20mm SA1212RM/RS
14" 0.125" / 8.5mm 1"~20mm SA1412RM/RS
16" 0.125" / 8.5mm 1"~20mm SA1612RM/RS
18" 0.135" / 8.5mm 1"~20mm SA1813RM/RS
20" 0.135" / 8.5mm 1"~20mm SA2013RM/RS
24" 0.160 / 8.5mm 1" SA2416RM/RS
36" 0.187 / 8.5mm 60mm SA3619RM/RS
Get a quote

Concrete

Concrete Segmented Blades Premium

Wet or dry cutting


  • Concrete
  • Building Materials

Read more

The SC Series Segmented Blades are designed for cured concrete with medium to hard aggregates. Cured concrete is generally concrete that has been allowed to set for more than 7 days.


Diameter Width // Rim Height Arbor Item
10" 0.095" / 8.5mm 5/8"DM7/8" SC1080RH/RHM/RM/RMS/RS
12" 0.110" / 8.5mm 1"~20mm SC1211RH/RHM/RM/RMS/RS
12" 0.125" / 8.5mm 1"~20mm SC1212RH/RHM/RM/RMS/RS
14" 0.110" / 8.5mm 1"~20mm SC1411RH/RHM/RM/RMS/RS
14" 0.125" / 8.5mm 1"~20mm SC1412RH/RHM/RM/RMS/RS
16" 0.125" / 8.5mm 1"~20mm SC1612RH/RHM/RM/RMS/RS
18" 0.135" / 8.5mm 1"~20mm SC1813RH/RHM/RM/RMS/RS
20" 0.135" / 8.5mm 1"~20mm SC2013RH/RHM/RM/RMS/RS
24" 0.160" / 8.5mm 1"~20mm SC2416RH/RHM/RM/RMS/RS
Get a quote

Masonry

Masonry Segmented Blades Premium

Wet or dry cutting


  • Brick & Block
  • Masonry

Read more

The SM Series Masonry Segmented Blades are designed to provide maximum cutting performance on hard materials such as hard bricks and medium-hard materials such as blocks.


Diameter Width // Rim Height Arbor Item
4" 0.080" / 8.5mm 5/8"~7/8" SM0408RH/RM/RS
4.5" 0.080" / 8.5mm 5/8"~7/8" SM4508RH/RM/RS
7" 0.080" / 8.5mm 5/8"DM7/8" SM0708RH/RM/RS
10" 0.095" / 8.5mm 1"~20mm SM1010RH/RM/RS
12" 0.110" / 8.5mm 1"~20mm SM1211RH/RM/RS
12" 0.125" / 8.5mm 1"~20mm SM1212RH/RM/RS
14" 0.110" / 8.5mm 1"~20mm SM1411RH/RM/RS
14" 0.125" / 8.5mm 1"~20mm SM1412RH/RM/RS
16" 0.125" / 8.5mm 1"~20mm SM1612RH/RM/RS
18" 0.135" / 8.5mm 1"~20mm SM1813RH/RM/RS
20" 0.135" / 8.5mm 1"~20mm SM2013RH/RM/RS
24" 0.155" / 8mm 1" SM2416RH/RM/RS
Get a quote

Masonry Turbo

Masonry Turbo Segmented Blades Premium

Wet or dry cutting


  • Concrete Block
  • Masonry
  • Roofing Tile

Read more

The ST Series Masonry Turbo Segmented Blades excel at fast, aggressive cutting of masonry and concrete materials. These high speed blades are commonly equipped on handheld chop saws. Turbo style segments facilitate cooling for prolonged, under load operations.


Diameter Width // Rim Height Arbor Item
4" 0.080" / 7mm 5/8"~7/8" ST0480RH/RM
4.5" 0.080" / 7mm 5/8"~7/8" ST4580RH/RM
7" 0.080" / 7mm 5/8"DM7/8" ST0780RH/RM
8" 0.095" / 7mm 5/8"DM7/8" ST0880RH/RM
10" 0.095" / 7mm 5/8"DM7/8" ST1080RH/RM
12" 0.125" / 9mm 1"~20mm ST1212RH/RM
14" 0.125" / 9mm 1"~20mm ST1412RH/RM
20" 0.135" / 7mm 1"~20mm ST2012RH/RM
Get a quote

MultiPurpose

Multiple Purpose Segmented Blades Premium

Wet or dry cutting


  • Brick & Block
  • Slate
  • Natural Stone
  • Abrasive Materials

Read more

The SG Series Multiple Purpose Segmented Blades are designed to perform at peak efficiency for a variety of applications. The blade utilizes laser-weld technology to ensure that the segment bonds have greater heat resistance in order to cope with the heat during dry cutting operations.


Diameter Width // Rim Height Arbor Item
4" 0.080" / 8.5mm 5/8"~7/8" SG0480R
4.5" 0.080" / 8.5mm 5/8"~7/8" SG4580R
7" 0.080" / 8.5mm 5/8"DM7/8" SG0780R
8" 0.085" / 8.5mm 5/8"DM7/8" SG0880R
9" 0.095" / 8.5mm 5/8"~7/8" SG0980R
10" 0.095" / 8.5mm 5/8"DM7/8" SG1095R
12" 0.110" / 8.5mm 1"~20mm SG1211R
12" 0.125" / 8.5mm 1"~20mm SG1212R
14" 0.110" / 8.5mm 1"~20mm SG1411R
14" 0.125" / 8.5mm 1"~20mm SG1412R
16" 0.125" / 8.5mm 1"~20mm SG1612R
18" 0.135" / 8.5mm 1"~20mm SG1813R
20" 0.135" / 8.5mm 1"~20mm SG2013R
24" 0.160" / 8.5mm 1"~20mm SG2416R
Get a quote

Stone

Stone Segmented Blades Premium

Wet or dry cutting


  • Granite
  • Marble
  • Natural Stone

Read more

The SN Series Laser-Welded Segmented Blades are ideal for cutting natural stones and medium-hard aggregates.


Diameter Width // Rim Height Arbor Item
4" 0.080" / 8.5mm 5/8"~7/8" SN0480RH/RS
7" 0.080" / 8.5mm 5/8"DM7/8" SN0780RH/RS
8" 0.080" / 8.5mm 5/8"DM7/8" SN0880RH/RS
10" 0.095" / 8.5mm 5/8"DM7/8" SN1080RH/RS
12" 0.110" / 8.5mm 1"~20mm SN1211RH/RS
12" 0.125" / 8.5mm 1"~20mm SN1212RH/RS
14" 0.110" / 8.5mm 1"~20mm SN1411RH/RS
14" 0.125" / 8.5mm 1"~20mm SN1412RH/RS
16" 0.125" / 8.5mm 1"~20mm SN1612RH/RS
18" 0.135" / 8.5mm 1"~20mm SN1813RH/RS
20" 0.135" / 8.5mm 1"~20mm SN2013RH/RS
Get a quote

Brick and Block

Wide U-Shaped Brick & Block Segmented Blades Premium

Wet or dry cutting


  • Hard Brick
  • Stone
  • Masonry
  • Cinder Block

Read more

The SB Series Laser Welded Segment Blades are best suited to cut brick & block and other aggregates with similar properties. The large U-shaped, angle slots are designed to quickly expel dust and to increase air flow for more efficient cooling during dry cutting operations (although wet cutting is possible as well).


Diameter Width // Rim Height Arbor Item
10" 0.095" / 8.5mm 5/8"~7/8" SB1080R
12" 0.125" / 8.5mm 1"~20mm SB1211R
14" 0.125" / 8.5mm 1"~20mm SB1411R
Get a quote

Masonry Dry

Masonry Dry Cutting Blades Premium

Dry cutting only


  • Paver
  • Brick
  • Block

Read more

The PSM-D Series Segmented Blades are general purpose, dry masonry blades for use with table saws (that operate at a lower RPM than high-speed hand-held saws). They can be used with bricks of varied hardness.


Diameter Width // Rim Height Arbor Item
14" 0.125" / 6.5mm 1" PSM14RD
18" 0.135" / 6.5mm 1" PSM18RD
20" 0.135" / 6.5mm 1" PSM20RD
Get a quote

Masonry Wet

Masonry Wet Cutting Blades Standard

Wet cutting only


  • Paver
  • Brick
  • Block

Read more

The PSM-W Series Segmented Blades are general purpose, wet masonry blades for use with table saws (that operate at a lower RPM than high-speed hand-held saws). They can be used with bricks of varied hardness.


Diameter Width // Rim Height Arbor Item
10" 0.095" / 6.5mm 1" PSM10SW
14" 0.125" / 6.5mm 1" PSM14SW
16" 0.125" / 6.5mm 1" PSM16SW
18" 0.135" / 6.5mm 1" PSM18SW
20" 0.135" / 6.5mm 1" PSM20SW
30" 0.187" / 6.5mm 60mm PSM30SW
Get a quote

High Speed

High Speed Dry Cutting Blades Standard

Dry cutting only


  • Cured Concrete (Hard Non-Abrasive Materials)
  • Green Concrete (Abrasive Materials)
  • General Purpose

Read more

The PHS Series High Speed Dry Cutting Segmented Blades are designed for use with hand-held electric or gasoline-powered saws with a maximum spindle RPM of 6000. They are suitable for cutting both abrasive and non-abrasive materials.


Diameter Width // Rim Height Arbor Item
12" 0.110" / 6.5mm 1"~20mm PHS12aSD
12" 0.125" / 6.5mm 1"~20mm PHS12bSD
14" 0.110" / 6.5mm 1"~20mm PHS14aSD
14" 0.125" / 6.5mm 1"~20mm PHS14bSD
Get a quote

Cured Concrete

Cured Concrete Wet Cutting Blades For Walk Behind Saw Premium

Wet cutting only


  • Cured Concrete

Read more

The PSC Series Segmented Blades are designed for walk-behind saws that wet cut cured concrete.


Diameter Width // Rim Height Arbor Item
14" 0.125" / 6.5mm 1" PSC14RW
16" 0.125" / 6.5mm 1" PSC16RW
18" 0.125" / 6.5mm 1" PSC18RW
20" 0.125" / 6.5mm 1" PSC20RW
Get a quote

Asphalt

Asphalt Wet Cutting Blades For Walk Behind Saw Premium

Wet cutting only


  • Green Concrete
  • Asphalt

Read more

The PSA Series Segmented Blades are designed for high speed handheld saws and walk-behind saws that cut green concrete and asphalt. To protect against segment loss and excessive wear on the steel core, these blades are outfitted with undercut protection.


Diameter Width // Rim Height Arbor Item
14" 0.125" / 6.5mm 1" PSA14RW
16" 0.125" / 6.5mm 1" PSA16RW
18" 0.125" / 6.5mm 1" PSA18RW
20" 0.125" / 6.5mm 1" PSA20RW
Get a quote

Dry Cutting

Dry Cutting Blades For Walk Behind Saw Standard

Dry cutting only


  • Cured Concrete (Hard, Non-Abrasive Materials)
  • Green Concrete
  • Asphalt (Abrasive Materials)

Read more

The PWB Series Segmented Blades are intended for walk behind saws with motors rated up to 18 HP and that operate under dry cutting conditions.


Diameter Width // Rim Height Arbor Item
12" 0.125" / 6.5mm 1" PWB12bSD
14" 0.125" / 6.5mm 1" PWB14bSD
Get a quote

Silver Solder

Silver Solder Segmented Blades Standard

Wet cutting only


  • Stone
  • Floor Tile

Read more

The SS Series Segmented Blades utilize silver solder technology to maximize use of the entire height of the segment. These blades are aimed at stone and floor tile applications on wet tile saws.


Diameter Width // Rim Height Arbor Item
7" 0.080" / 7mm 5/8"DM7/8" SS0708S
10" 0.095" / 7mm 5/8"DM7/8" SS1010S
Get a quote

Sinter Segment

Sinter Segmented Blades Standard

Wet cutting only


  • Stone
  • Concrete

Read more

The SR Series Segmented Blades are cost-effective blades intended for single use or for small jobs, especially in the DIY market. The sinter manufacturing process enables the use of the entire segment, much like sinter blades for an even lower cost-per-cut.


Diameter Width // Rim Height Arbor Item
4" 0.07" / 7mm 5/8"~7/8" SR0407S
4.5" 0.07" / 7mm 5/8"~7/8" SR0457S
7" 0.08" / 7mm 5/8"DM7/8" SR0708S
Get a quote
